WHEN FLEXIBILITY MEETS SPACE EFFICIENCY
MOUNT SMARTSHELF® SHELVING SYSTEM ON MOBILEX® MECHANICAL-ASSIST MOBILE SYSTEM AND INSTANTLY REALIZE POSITIVE GAINS WITHIN
YOUR AVAILABLE SQUARE FOOTAGE.
You can store anything with SmartShelf®. This new revolutionary shelving system was designed to be configured and reconfigured easily and efficiently. In fact, we offer the widest range of products in the market. We will go to any length, width or depth to optimize your space. The only good solution is a flexible solution.

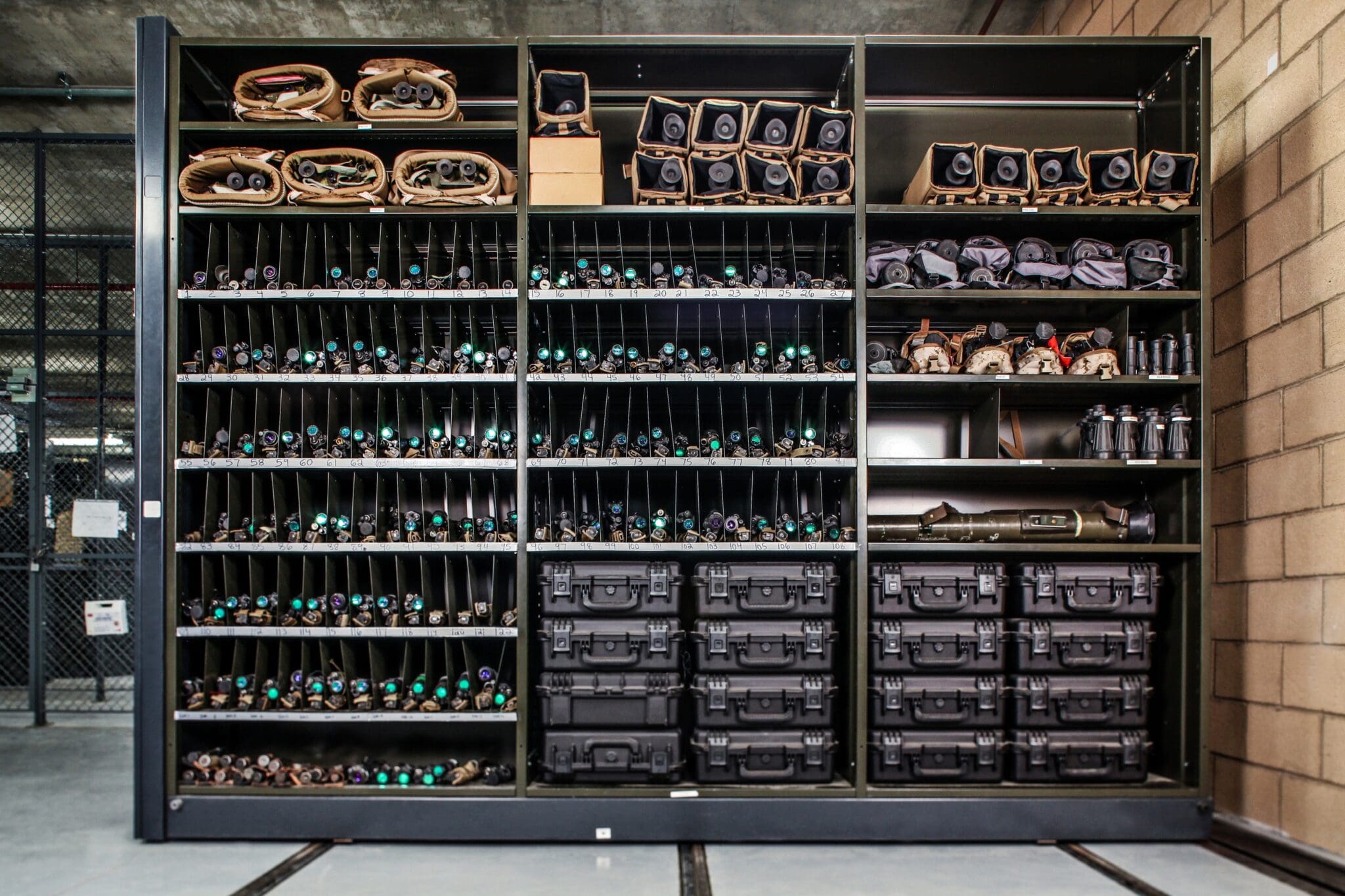

SmartShelf® 4-Post hybrid shelving system mounted on mechanical-assist mobile storage system
GET MORE VERTICAL & HORIZONTAL SPACE
WITH SMARTSHELF® & MOBILEX®
PATENT # 6,814,245
TAKE SPACE EFFICIENCY TO A NEW LEVEL | MAXIMIZE YOUR STORAGE | OPTIMIZE YOUR SPACE
Our continuous quest for space optimization has led us to develop SmartShelf®, a shelving system that exceeds industry standards.
MORE STORAGE VERTICALLY
ADJUSTABLE SHELVES IN 1″ (25.4 MM) INCREMENTS
MORE STORAGE HORIZONTALLY
3/4″ (19 MM) MORE USABLE STORAGE PER SHELF
DO THE SMARTSHELF®
MATH
100 SECTIONS OF 97″ (246.38 CM) HIGH
WITH 8 TIERS OF BACK-TO-BACK SHELVING
UNITS WOULD REPRESENT:
8 TIERS
X 2 BACK-TO-BACK SHELVING UNITS
X 3/4″ (19 MM) MORE STORAGE PER SHELF
= 12″ (30.48 CM) MORE USABLE STORAGE PER SHELVING UNIT
X 100 SECTIONS
= 1,200″ (30.48 M) ADDITIONAL LINEAR INCHES
OF STORAGE WITH SMARTSHELF® VS. L&T
NOTE: WHAT ABOUT THE ADDITIONAL STORAGE VERTICALLY
DUE TO THE 1″ INCREMENTS VS. L&T AT 1 1/2″ INCREMENTS.
ADD THESE EXTRA LINEAR INCHES TO YOUR TOTAL.
COMBINED FLEXIBILITY TO STORE VIRTUALLY ANYTHING
EVERYTHING IS NOW POSSIBLE WITH SMARTSHELF® TAKE SPACE EFFICIENCY TO A NEW LEVEL
SmartShelf® is designed to be configured and reconfigured easily and efficiently. Shelves and accessories are interchangeable. That way, they can grow and evolve according to your future storage needs.
4-POST HYBRID BOLTLESS SHELVING SYSTEMS
& INDUSTRIAL DRAWERS
A SMART BOLTLESS SHELVING SYSTEM
A SMART SHELVING SYSTEM FOR YOUR CURRENT AND FUTURE
STORAGE NEEDS. YOU CAN FACE THE FUTURE WITH PEACE OF MIND.
You can store anything with SmartShelf®
. This new revolutionary shelving system was designed to be configured and reconfigured easily and efficiently. The only good solution is a flexible solution!
BEST OF BOTH WORLDS
EXCLUSIVE BACK-TO-BACK AND DOUBLE FACE FULL DEPTH SHELF TECHNOLOGY
TWO TECHNOLOGIES WITHIN A SINGLE POST FRAME
SmartShelf® is the only storage system that can be configured as back-to-back or double face full depth shelf, or any combination of both from one tier to the next, and from one shelving section to the other. This exclusive flexibility allows the storage of objects in various shapes, forms, and dimensions.
This unique patented boltless shelving concept provides two alternatives which you can mix and match for endless storage possibilities:
- Shelving system with hooks requiring no tools for shelf adjustment capable of withstanding a load capacity of up to 300 lb per shelf
- Shelving systems with shelf supports & reinforcements capable of withstanding a load capacity of up to 500 lb per shelf
SHELVES ARE ADJUSTABLE BY 1″ (25.4 MM) INCREMENTS WITH HOOKS, OR BY 1 1/2″ (38 MM) INCREMENTS WITH SUPPORTS
- Adjustments for storing objects of various Offers more adjustability and optimizes the space between each level of shelving
- Hooks and supports can be used in the same section
Patent No. 6,814,245
DESIGN FEATURES
SHELF SUPPORTS (OPTIONAL)
These supports are available in 3/4″ (19.5 mm) or 1 1/4″ (31.75 mm) height, according to the application and required load, and adjustable on 1 1/2″ (38 mm) increments. They are made of 12-gauge (2.66 mm) steel. Safely supports the shelves and allow for the addition of reinforcements. Increases rigidity
SHELF REINFORCEMENTS (OPTIONAL)
Shelf reinforcements are inserted in the longitudinal supports. The number of supports depends on the width of the shelves and the weight of the items to be stored
FOUR ROLL-FORMED SHELF FOLDS
- The fourth fold reduces the risk of injury, protects documents or objects, and makes the shelves sturdier
- The 3/4″ (19.5 mm) shelves are made of 20″ (0.91 mm) or 18″ (1.21 mm) gauge steel
- The 1″ (25.4 mm) shelves are made of 18-gauge steel
INTEGRATED LEVELERS
Unlike shims, integrated levelers ensure accuracy, stability and a safe working environment on uneven floors.
CLOSURE PANELS OR END DIVIDERS (OPTIONAL)
Closure panels extend into the shelf area. Prevent stored objects from falling behind the closed-post upright. End dividers provided with slotted shelves are a more economical alternative.
INDUSTRIAL MODULAR DRAWERS
MODULAR DRAWERS LOAD CAPACITY:
- 400 lb load capacity industrial-grade drawers
- 200 lb load capacity commercial-grade drawers
CONSIDERATIONS:
- Drawer handles overhang by about 2 inches
- Consider wider bumbers when on mobile carriages
- Minimum of 2 anti-tip rails if used on mobile carriages
- Maximum height for drawers-in-shelving: 48 inches
- Static units anchored to floor
LOCK-IN MECHANISM WITH HANDLE
The ergonomic aluminium handle and lock-in device procure a user-friendly experience in a sturdy unit
COMPARTMENT SPECIFICATIONS
400 LB LOAD CAPACITY INDUSTRIAL DRAWERS
3 TO 8 COMPARTMENTS
12 TO 24 COMPARTMENTS
32 TO 44 COMPARTMENTS
INDUSTRIAL DRAWERS | 400 LB LOAD CAPACITY | 36 SIZES AVAILABLE
Industrial Drawers SmartShelf
For industrial environments, parts to be stored vary between large, heavy, small and bulky. Montel’s industrial drawers are designed to offer a storage solution for these different needs in one unique and flexible accessory. Moreover, there is no need to buy a drawer-only unit because Montel’s industrial drawers are designed to be installed on SmartShelf shelving systems. This way it can be paired with useful accessories, creating endless storage layouts.
FEATURES:
A. Full-Extension Roller Bearing Slides
B. Aluminum Handle
C. Label Slot
D. Perforated Wall
E. Partitions and Dividers
BENEFITS:
A. Industrial drawers are mounted on heavy-duty roller bearing slides for a smooth travel and a very durable product. Drawers have a capacity of 400 lbs (180 kg).
B. The aluminum handle is designed for an ergonomic and sturdy feel.
C. Label slots along the entire length of the handle come with a plastic cover to protect your labels.
D. Drawers can be ordered with or without the perforations used for partitions and dividers.
E. Pre-configured partition kits or individual partitions can be ordered to create custom configurations of compartments to create endless storage layouts that can easily be reconfigured as needs evolve.
APPLICATION:
Industrial drawers are designed for SmartShelf shelving, but can be customized for 4D Wide Span, Hi-Bay or any other 4- post shelving. They can be installed on static or mobile units and can be combined with a wide range of 4-post shelving accessories.
TECHNICAL SPECIFICATIONS:
- Drawers: Made of powder coated 18-gauge The load capacity is 400 lbs per drawer.
- Handle: The handle is made of an extruded anodized aluminum bar running full width of the drawer and covered with sturdy plastic caps on its
- Slides: The heavy-duty roller bearing slides provide smooth travel and full-depth They are powder coated.
- Compartments: For partitioned drawers, each inner wall of the drawer is slotted at every 1″ increment to receive partitions and dividers. Dividers are made of aluminum for a lighter design.
DESIGN AND CAPABILITIES:
