MOBILEX® MECHANICALASSIST STORAGE SYSTEM



EFFORTLESSLY MOVE ONE OR MORE CARRIAGES ALL AT ONCE

With its engineered gear ratios and superior quality components, montel can easily proclaim to have the best combination for the smoothest running mobile storage systems.

THE BEST
MECHANICAL-ASSIST
MOBILE STORAGE SYSTEM

OPTIMIZE AND CUSTOMIZE YOUR STORAGE SPACE WITH MONTEL’S FLEXIBLE, HIGH-DENSITY MOBILE SHELVING SYSTEM

Easily recover floor space with the addition of new Montel shelving, existing shelving or racking securely mounted on Montel carriage and rail systems.

SAVE SPACE BY MOBILIZING YOUR STORAGE SYSTEM

Eliminate the need for multiple space-wasting static aisles and use the total potential of your vertical and horizontal space. Save 50% or more of your floor space or get 100% greater storage within the original floor space.





WASTED SPACE CONVENTIONAL FIXED SHELVING LAYOUT







SPACE SAVED AND INCREASED PROFITABILITY MOBILE STORAGE SYSTEM LAYOUT. 50% OF FLOOR SPACE SAVED WITHIN SAME FOOTPRINT.







DOUBLED STORAGE CAPACITY AND INCREASED
PROFITABILITY MOBILE STORAGE SYSTEM LAYOUT.
100% GREATER STORAGE WITHIN SAME FOOTPRINT.







MAXIMIZING VERSATILITY AND FUNCTIONALITY

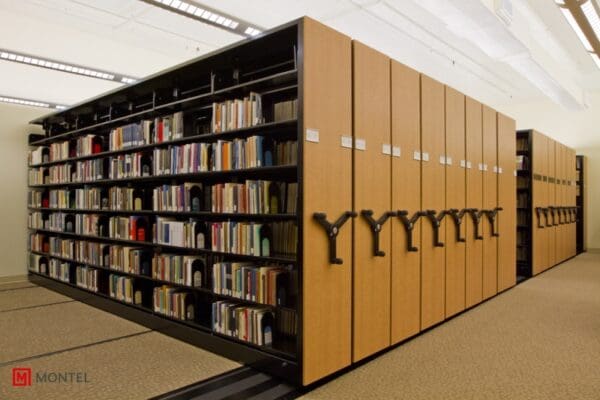

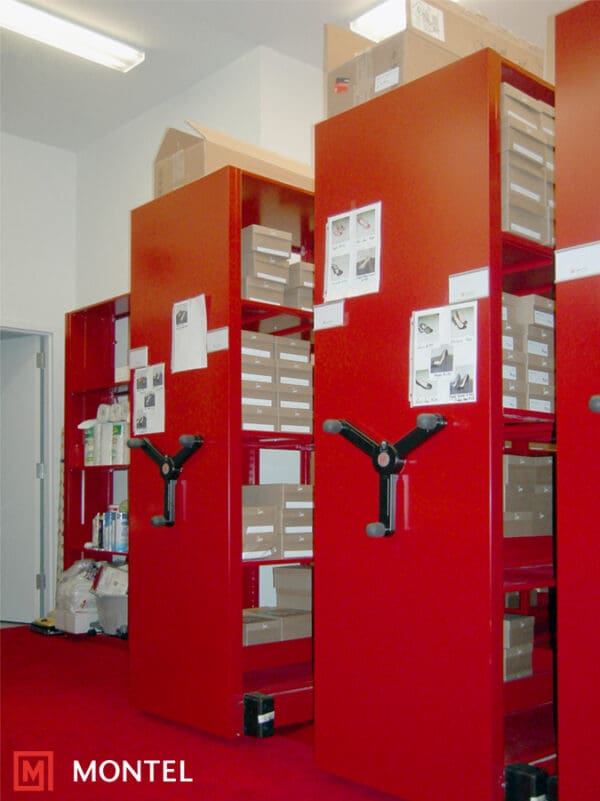

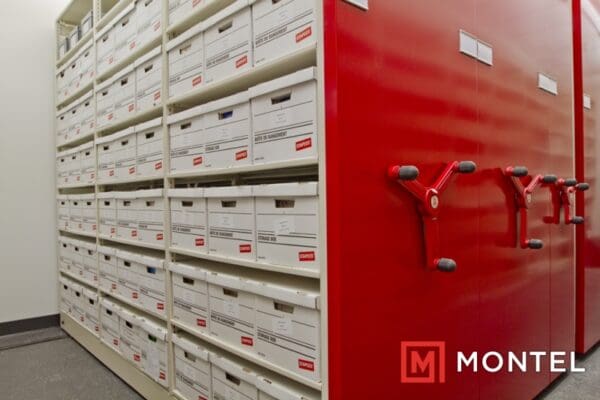

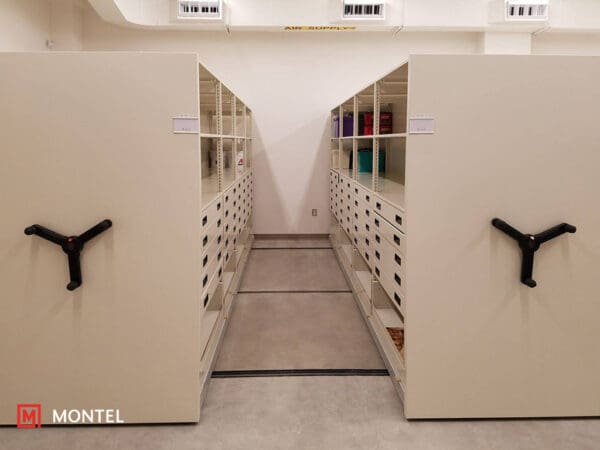

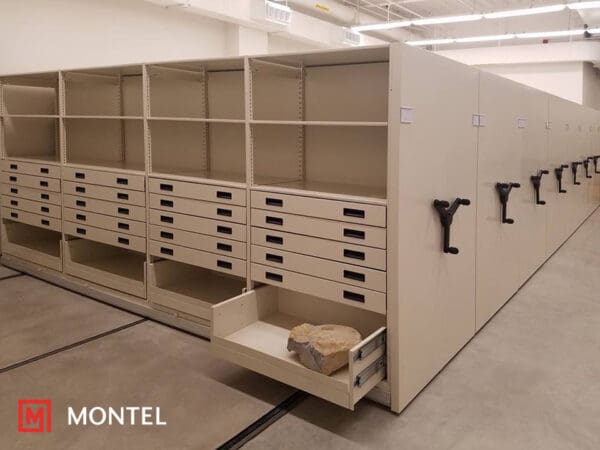

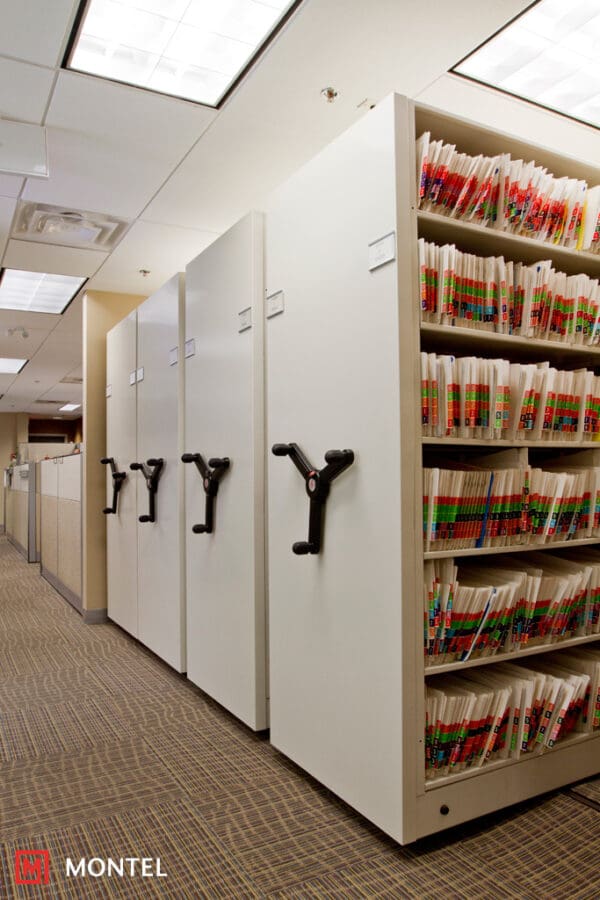

Mobilex® is the ideal high-density mobile shelving system for any business or institutional setting. Montel’s signature  high-density movable storage system gives you the flexibility to customize your shelving while optimizing your capacity.

ENDLESS POSSIBILITIES. COST-EFFECTIVE SOLUTION.

The storage possibilities are endless: tires, plants, evidence, archives and office supplies, specimens and artifacts, sporting equipment, medical supplies, tools and parts and much, much more.

Whether mechanical or electrical, this cost-effective, high-density, movable storage solution is designed to accommodate various leading edge Montel shelving products. A wide range of accessories is also available: reference pull-out working shelves, hanging rods, bins, garment rods, drawers, hanging files and more. Further customize your mobile shelving system via our broad selection of optional safety, security, design and aesthetic features.

WHY MOBILEX®?

ONLY REQUIRES ABOUT 1 LB OF PRESSURE TO MOVE ONE OR MORE WHOLE UNITS
AT ONCE. MOBILEX® IS ENGINEERED PRECISELY FOR HANDLING THE HEAVIEST WEIGHT WITH THE LIGHTEST EFFORT.

• DURABILITY & TROUBLE FREE MAINTENANCE
• BUILT FOR DECADES OF USE
• THE MOST USER-FRIENDLY HIGH-DENSITY MOBILE STORAGE SYSTEM
• A HIGHLY SECURE MOBILE STORAGE SYSTEM
• INCREASE PRODUCTIVITY BY SAVING TIME AND COSTS
• THE ONLY GOOD SOLUTION IS A CONFIGURABLE AND RECONFIGURABLE SOLUTION
• GROW FROM THE INSIDE

DID YOU KNOW?

MOBILEX® CARRIAGES HAVE A MAXIMUM LOAD CAPACITY OF 1,000 LB PER LINEAR FOOT (1,488 KG PER LINEAR METER)



EX: 25 FT (7.62 M)

LONG CARRIAGES

HOLDS 25,000 LB

(11,340 KG)



MOBILEX® CARRIAGES CAN BE UP TO 45 FEET (13.7 M) LONG WITH A MAXIMUM LOAD CAPACITY OF 45,000 LB (20,412 KG). ELECTRICAL POWERED CARRIAGES CAN BE UP TO 100 FEET (30.5 M) LONG WITH A MAXIMUM LOAD CAPACITY OF 100,000 LB (45,359 KG).



THE CONCEPT

OPTIMIZE YOUR STORAGE SPACE

MONTEL HIGH-DENSITY STORAGE SYSTEMS MAXIMIZE THE USE OF AVAILABLE SPACE, WHETHER TO INCREASE STORAGE CAPACITY, FREE UP ROOM FOR PRODUCTION
OR OTHER USES, OR GET RID OF SPACE YOU DO NOT NEED TO PAY FOR.

ELIMINATE THE NEED FOR MULTIPLE SPACE-WASTING STATIC AISLES.

1. Static units are mounted on mobile carriages.
2. Mobile carriages travel on tracks.
3. Open the desired aisle.
4. Press the aisle safety push-button located at the center of the handle.

MODES OF OPERATION



Large SafeCrank Handle

with aisle safety push-button



Small SafeCrank Handle

with aisle safety push-button.

Ideal for narrow panels less than 20″ wide (508 mm).

AVAILABLE WITH SAFEAISLE® MOBILE SYSTEMS*

REFER TO SAFEAISLE® BROCHURE FOR MORE INFORMATION

Powered mobile storage systems 3-button control.

Powered mobile storage systems control with PIN for restricted access.

Powered mobile storage systems touchscreen tablet control

with or without PIN code. Limitless customizable displays.

WASTED SPACE CONVENTIONAL FIXED RACKING LAYOUT.

Conventional storage systems require space-wasting fixed aisles.

SPACE SAVED & INCREASED PROFITS MOBILE STORAGE LAYOUT.

50% of floor space saved within same footprint.

DOUBLED STORAGE CAPACITY.
MAXIMIZED SPACE & INCREASED
PROFITS MOBILE LAYOUT.

100% greater storage within same footprint.

BEST-IN-CLASS SAFETIES

EXPERIENCE THE INDUSTRY’S SAFEST

MECHANICAL-ASSIST MOBILE STORAGE SYSTEM

SAFECRANK AISLE SAFETY PUSH-BUTTON

STANDARD SAFETY

To operate the system, rotate the SafeCrank handle clockwise or counterclockwise. To lock or unlock the SafeCrank handle, simply press the aisle safety push-button located at the center of the handle. A locked handle prevents the engaged mobile unit from moving. Mobile units on both sides of an aisle in use must be locked to ensure user safety.

UNLOCKED

PUSH TO LOCK OR UNLOCK

LOCKED

AISLE SAFETY

PUSH-BUTTON LOCK

• Large round push-button lock easier to press and depress
• Visible red rim along the outer rim when locked
• Band acts as a color-coded visual indicator of its locked state

GRAVITY-FED MECHANICAL SAFETY BRAKE

OPTIONAL SAFETY

Montel’s patented mechanical safety brake ensures complete protection for users and objects. The toe-level bar, when engaged, will automatically stop the carriage. Only light pressure is needed for the bar to activate the mechanism.

• Gravity-fed patented concept
• No brake adjustments needed after installation
• Shock absorber coupling
• Smooth braking



SAFECRANK ERGONOMIC

3- SPOKE HANDLE

EASY & SMOOTH ROTARY MOTION

AVAILABLE HANDLES

SafeCrank handles provide a convenient handgrip at a comfortable level of operation and an easy and smooth rotary motion from any starting position. SafeCrank handles are ADA Compliant.

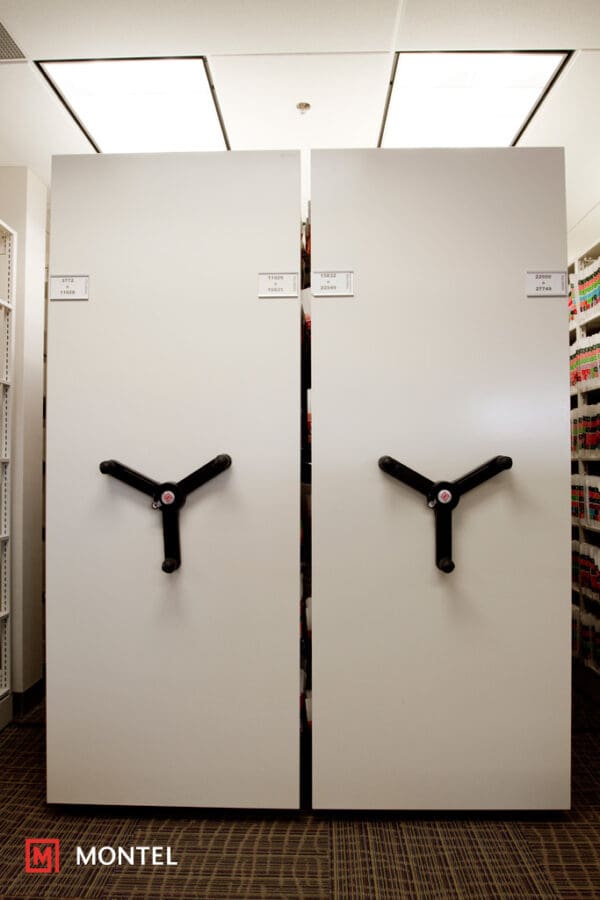

LARGE SAFECRANK HANDLES



• Integrated aisle safety push-button safety
• Large SafeCrank handles are offered in Black, Montel Red, and Polar White

SMALL SAFECRANK HANDLES

• Ideal for narrow panels less than 20″ wide (508 mm)
• Integrated aisle safety push-button safety
• Available in Black only

FEATURES & BENEFITS

THREE-LOCK HUBS

• Three-lock hubs secure the handle in locked position when circular hub is pressed
• Three round detents keep carriage movement locked down

THREE SOFT-TOUCH ERGO GRIPS

• 1 3/4″ (44.4 mm)Diameter x 2″ long (50.8 mm)
• Ensures a comfortable and safe grip
• Made of comfort-grip fiberglass-filled polypropylene
• Ergonomic design to fit the hand
• Drive knob turns in your hand for easier carriage movement

DUAL ACCESS

OPTIONAL

• Mobile system accessible at each end of mobile units
• Handles located at each extremity

MOBILEX®

VALUE YOU CAN COUNT ON

Of all the mobile storage system on the market, Mobilex® stands in a class of its own. This pioneering system with a proven design constantly evolving with changing needs. A wise investment anytime, it gives you incredible value for your storage dollar. Mobilex® adapts perfectly to your access, conservation, and safety priorities, regardless of the size, weight, dimensions, and value of your objects. Reliable, durable, and flexible, Mobilex® optimizes your storage space in complete safety.

TRACK & FLOOR SURFACE OPTIONS

SURFACE MOUNTED RAIL

MOUNTED ON TOP OF A LEVELED CONCRETE FLOOR



FLOOR MOUNTED TRACK

CONCRETE PAD



RECESSED TRACK

EMBEDDED IN CONCRETE



FLOOR MOUNTED TRACK

PLYWOOD DECKING

MONTEL PRODUCT SHOWN IS
A HD 16MA WITH SURFACE MOUNTED
STEEL RAIL ON CONCRETE FLOOR.

RECESSED TRACK EMBEDDED
IN CONCRETE.

FLOOR COVERING MATERIALS SUCH AS
CARPET, TILE, LAMINATE AND VINYL CAN
BE APPLIED OVER PLYWOOD DECKING.

SURFACE MOUNTED RAIL

One-piece solid steel rail system for surface mount applications on a leveled slab. Anchored directly to the concrete slab with a chamfered edge flush fit design to reduce tripping hazards and allow carts to easily roll over. Steel rail treated against oxidation with a heavy-duty powder coated paint.

SURFACE MOUNTED RAILS ARE AVAILABLE IN 4-FOOT SECTIONS (122 CM)

RECESSED OR FLOOR MOUNTED TRACK

Leveled track design with a solid steel rail embedded into grouted aluminum sub-rail for superior strength and load distribution to the concrete slab. Narrow guidance channels reduce tripping hazards and allow carts to easily roll over.

ALUMINUM SUB-RAILS ARE AVAILABLE IN 12-FOOT SECTIONS (3.66 M) STEEL RAILS ARE AVAILABLE IN 10-FOOT SECTIONS (3.05 M)

BUILT-IN ANTI-TIP RECESSED OR FLOOR MOUNTED TRACK
Built-in anti-tip leveled track design with a solid steel rail embedded into a grouted aluminum sub-rail with anti-tip channels for both seismic and high shelving applications which also provides for superior strength and load distribution to the concrete slab.

MOBILEX® FEATURES & BENEFITS
& TRACK OPTIONS COMPARISON CHART

SUPERIOR DURABILITY

& TROUBLE-FREE MAINTENANCE

CARRIAGES | WHEELS & GUIDANCE | SHELVING ANCHORING



ALL-RAIL DIRECT-DRIVE SYSTEM

• Direct drive mechanism
• Full length drive shaft wheel at every rail location. This creates uniformly distributed pulling forces
• Large diameter torque-resistant drive shaft provides power to all wheels connected to the line shaft
• No multiple internal chain mechanisms and drive shafts which would require more maintenance
• Prevents fishtail with unbalanced loads
• Reduces stress on the carriage structure
• Enhances stability and performance
• Provides positive tracking effect
• Extends life of the systems



TORQUE-RESISTANT TUBULAR DRIVE SHAFT

• Most durable shaft in the industry
• Lighter, stiffer and stronger structure
• Torsion resistance of 11,773 lb-in (1,330 N-m)
• Tubular drive shaft inside diameter: 045”(26.5 mm)
• Tubular drive shaft external diameter: 315” (33.4 mm)



STEEL C-SHAPED CROSS MEMBERS & CARRIAGE JOINTS

• Steel C-shaped members provide great structural strength
• Carriage joints allow smaller carriage sections, which provide easier shipping and facilitate the installation of long carriages despite physical limitations such as elevators
• Allows the extension of existing carriages by adding sections
• Bolted from the inside to provide a clean exterior finish without visible hardware

AERONAUTICAL RIVET BONDING CARRIAGE ASSEMBLY

• Prevents play and looseness thereby consistent and precise
• Expands when seated thus filing the space completely and providing maximum strength
• Eliminates distortion and reduces material stress caused by welding
• Facilitates system relocation
• Allows easy and economical carriage modifications

ALL 5″ DIAMETER HARDENED STEEL WHEELS

• Provides larger turning diameter minimizing the number of wheel rotations and lowers the wear to the wheel
• Ensures a long-lasting system
• Provides greater strength
• Provides smooth and easy movement
• Prevents uneven wear since all wheels are the same diameter, as opposed to systems using a combination of 3-inch (76.2 mm) and 5-inch (127 mm) wheels

DOUBLE-FLANGED PRECISION-MACHINED 1045 HARDENED STEEL WHEELS

• Enables the system to move smoothly
• Minimizes vibration
• Minimizes wear and tear on the wheel thus reducing risk of maintenance problems
• Secure guidance even with an unbalanced system
• Rolling friction coefficient of less than 0117

LIFETIME LUBRICATED & SHIELDED BALL BEARINGS

• Minimum load rating of 3,540 lb (1,605 kg) per wheel
• Ensures a long system life and a smooth movement
• Bearings are maintenance free and provide smooth and easy movement

BEST-IN-CLASS SHELVING ATTACHMENT TO MOBILE CARRIAGE

• Full C Channel construction
• Design allows no visible hardware on front face of carriage
• Montel SmartShelf®rests on 5” (127 mm) high steel carriage
• Montels bearing capacity is that of entire carriage
• SmartShelf® attached with two 4” (101.6 mm) bolts per frame versus only 3/4″ (19 mm) tek screws as usually provided by other manufacturers





EXCEPTIONAL PERFORMANCE

DUE TO SUPERIOR QUALITY

A system’s performance is proved over time, day after day, year after year. It’s a matter of quality design, components, and installation. It’s measured in superior durability and trouble-free maintenance. It’s enhanced by the many special features that make our systems so pleasant to use. Simply put, we are performance professionals. Our systems are regularly tested by industrial research centers and independent laboratories. We continually invest in Research and Development to maintain and improve our reputation as a leader in quality. We capture the majority of bids where performance is the main selection criteria.

MOBILEX® OPTIONAL STAINLESS STEEL

Mobilex® Stainless Steel selective components can withstand rough corrosive conditions and is ideally suited for clean rooms found in hospitals, pharmaceutical manufacturing, and also corrosive environments such as cold storage applications, freezers, food manufacturing, kitchens, and even offshore platforms.

Mobilex® Stainless Steel components such as wheels and rails are made of stainless steel and drive shafts are treated with an anti-corrosion coating. Other components could be supplied in stainless steel on request upon factory’s approval.

STAINLESS STEEL LOW PROFILE RAIL & WHEEL

SURFACE MOUNTED

ALUMINUM SUB-RAIL & STAINLESS STEEL RAIL

RECESSED OR FLOOR MOUNTED TRACK
