FEATURES:

• Aluminum Rails
• Glass-Filled Nylon Durable Wheels
• Stainless Steel Ball Bearings
• Stainless Steel Wheel Shafts
• Sleek Wheel Channels
• No Side Member
• Painted and Sealed Drive Tubes
• Mechanical Handle
• Confined Chain Mechanism
• Stainless Steel Hardware
• 4D Bolted Racking

BENEFITS:

• The aluminum rail is easy to install, to clean and will not rust.
• The wheels are made of glass-filled nylon which offers excellent weight capacity, is rust free and significantly lighter than steel. They are resistant to most chemicals, solvents, gases, acids and steam cleaning, do not absorb water and are made from recyclable and environmentally friendly material.
• All bearings are made of stainless steel for superior longevity.
• All wheel shafts are made of stainless steel for exceptional corrosion resistance.
• Wheel channels are designed to be as simple as possible to optimize reliability and reduce maintenance and rust formation. They are made of powder coated steel.
• No cumbersome side members in the way when you are working in the system for increased reach.
• Drive tubes are sealed at each end to prevent rust formation.

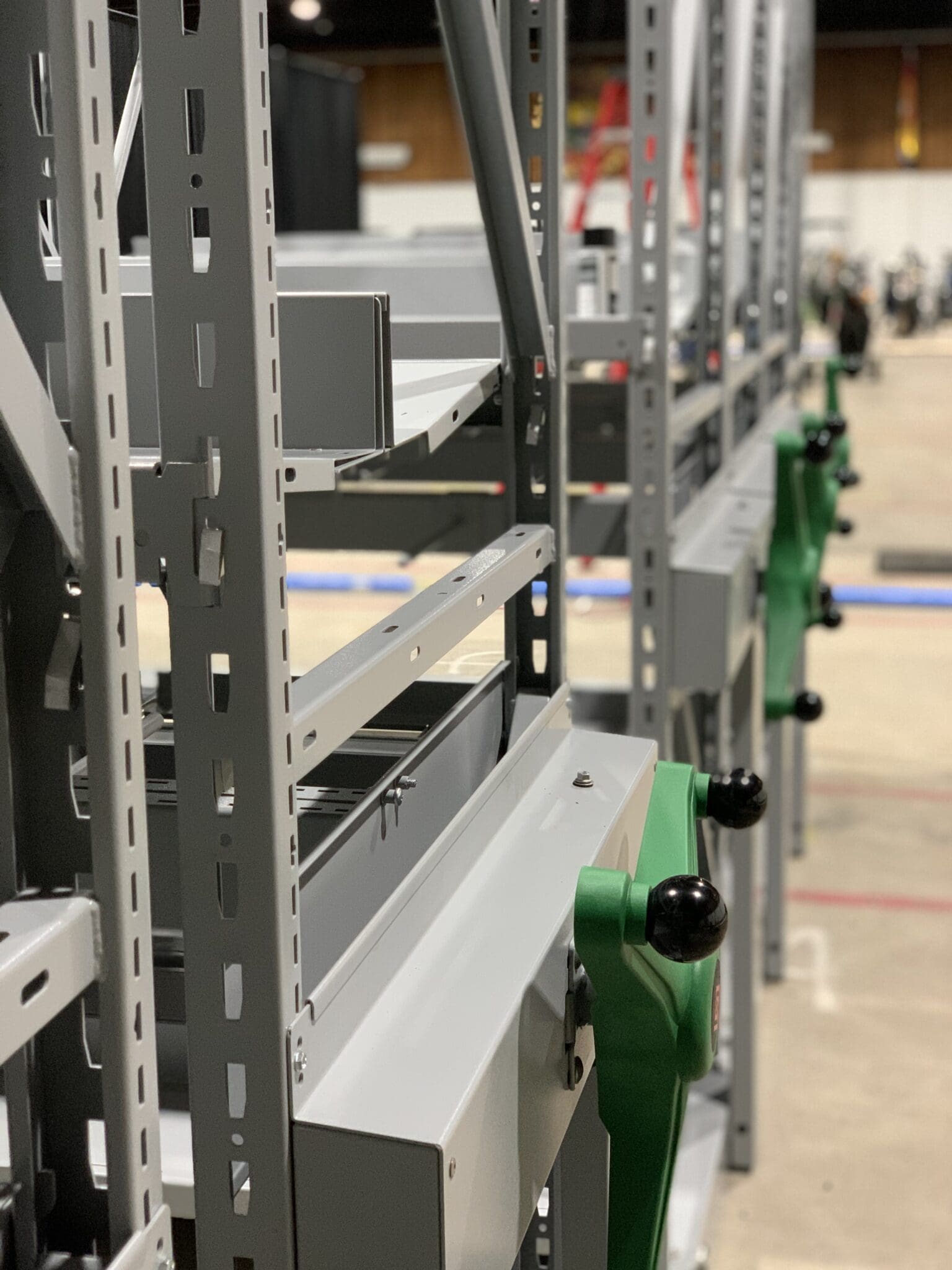

• The handle gives a comfortable carriage operation and the aisle safety push-button protects users by preventing the system from moving while the aisles are occupied.
• All chain mechanisms are confined to increase operation safety by hiding moving parts.
• All hardware is made of stainless steel for exceptional corrosion resistance.
• The 4D Bolted Light-Duty racking is specifically suited for the required capacity and available with wire mesh decking. All powder coated.

APPLICATION:

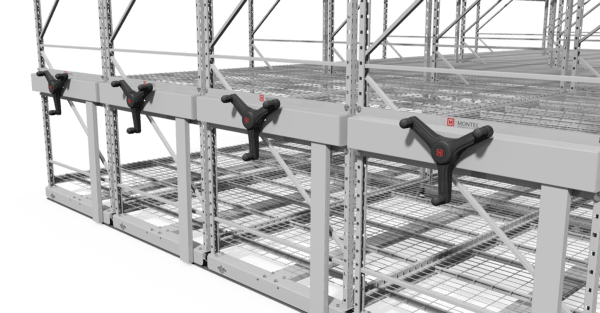

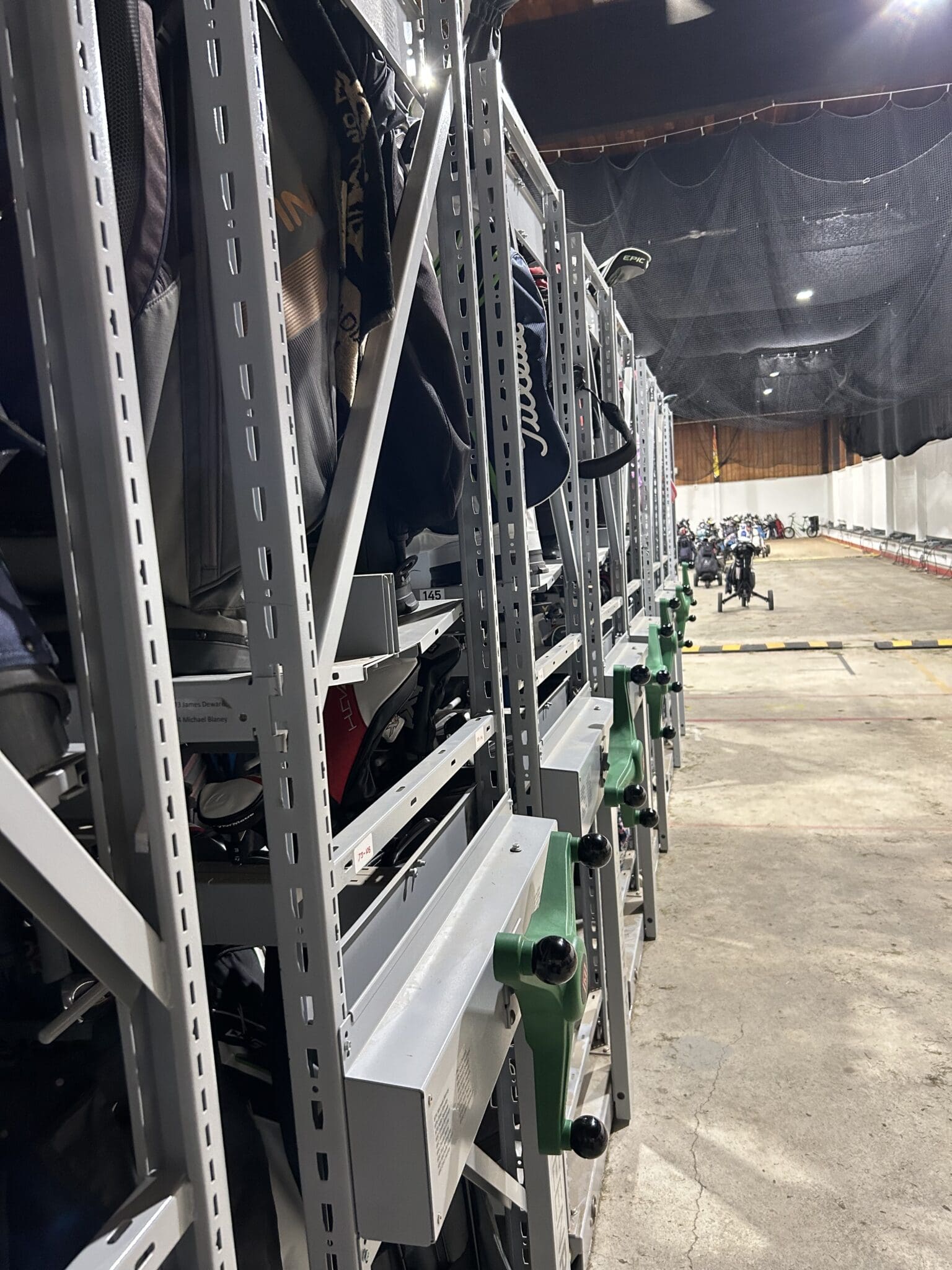

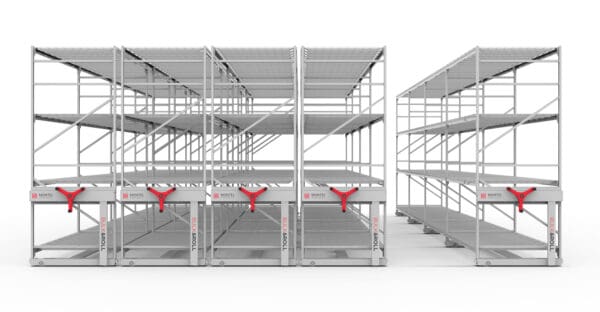

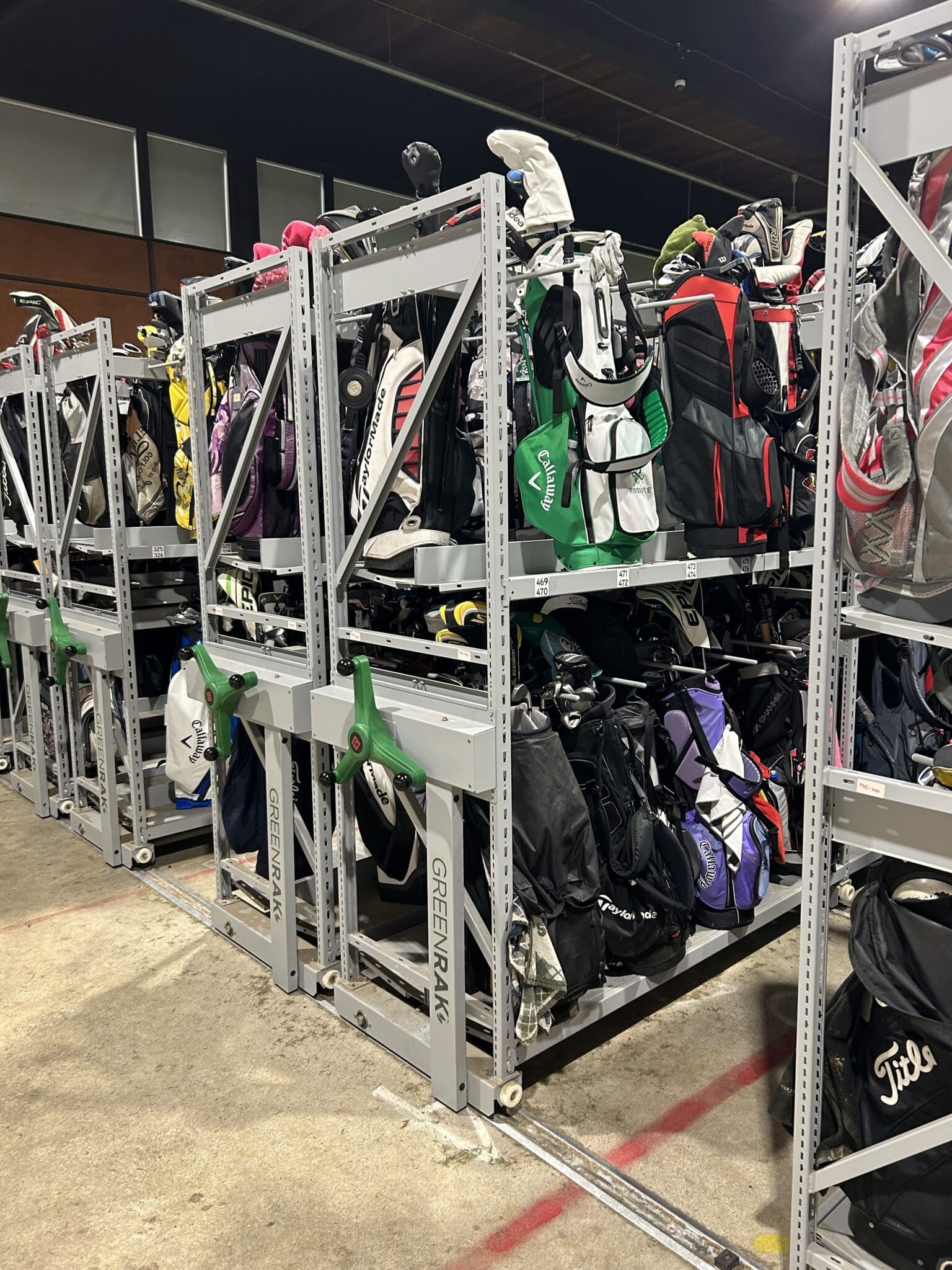

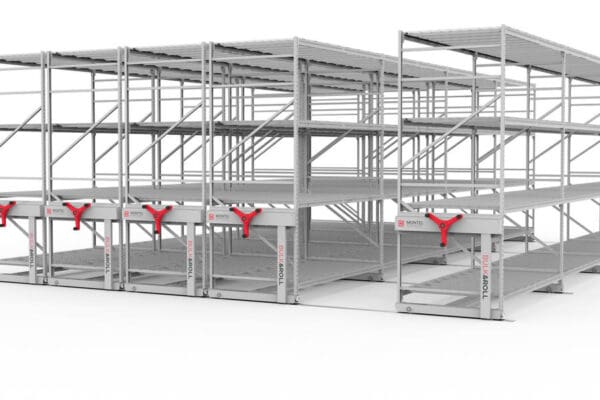

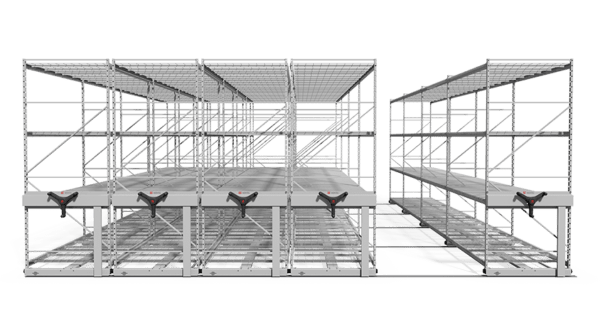

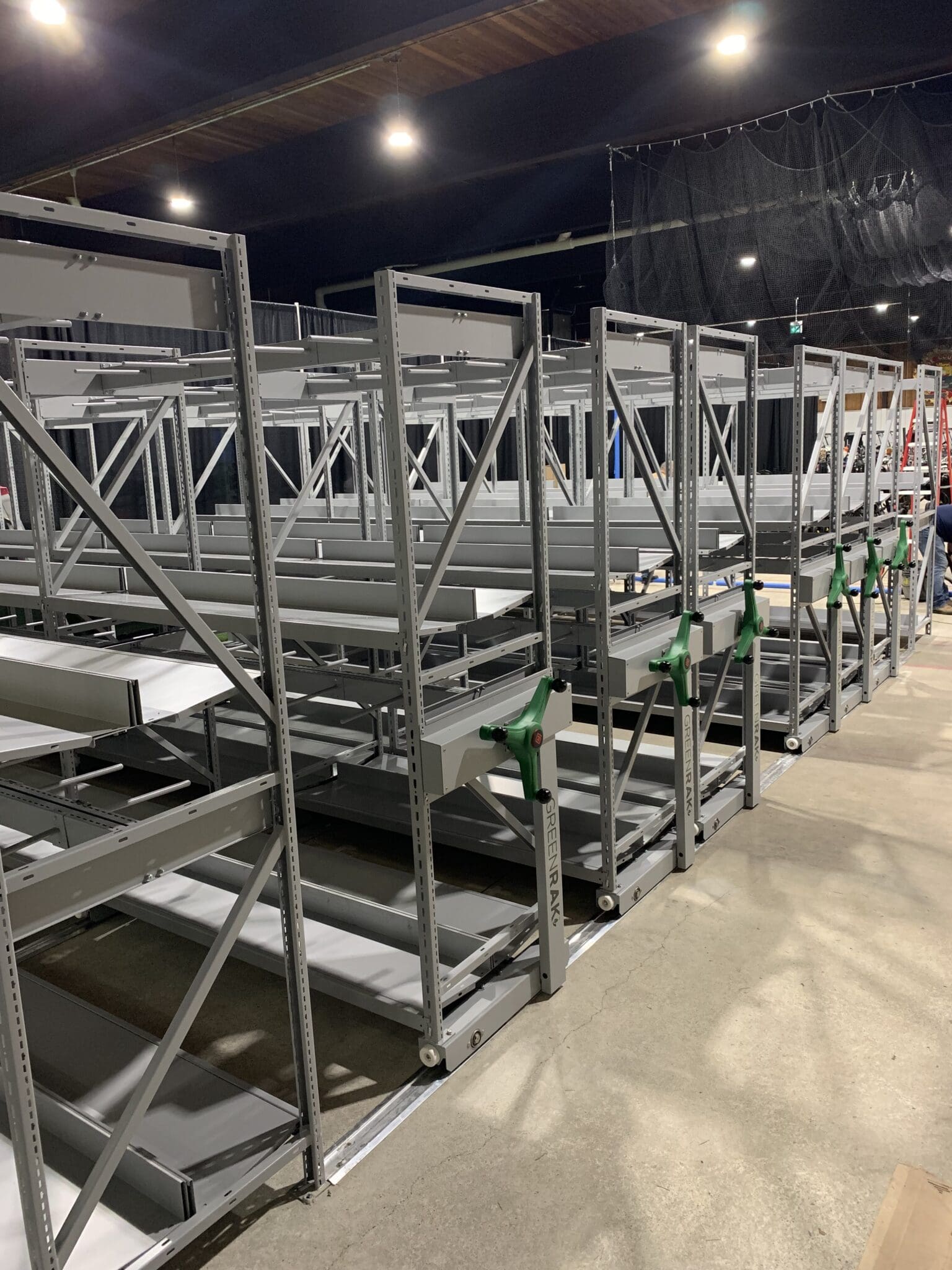

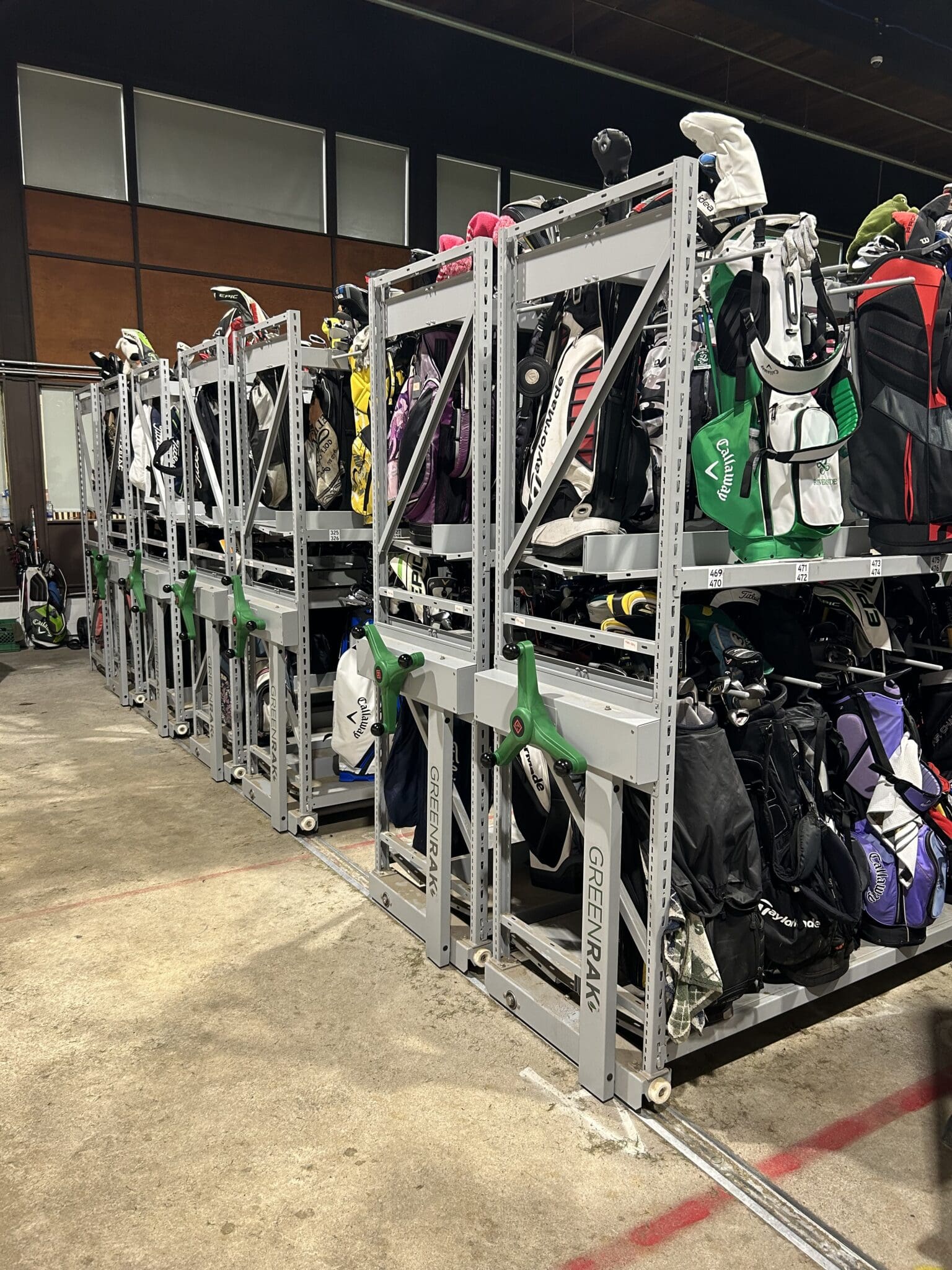

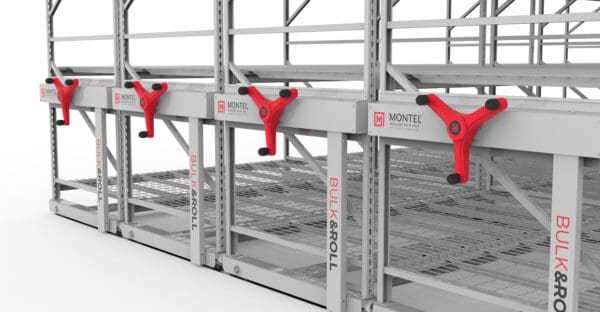

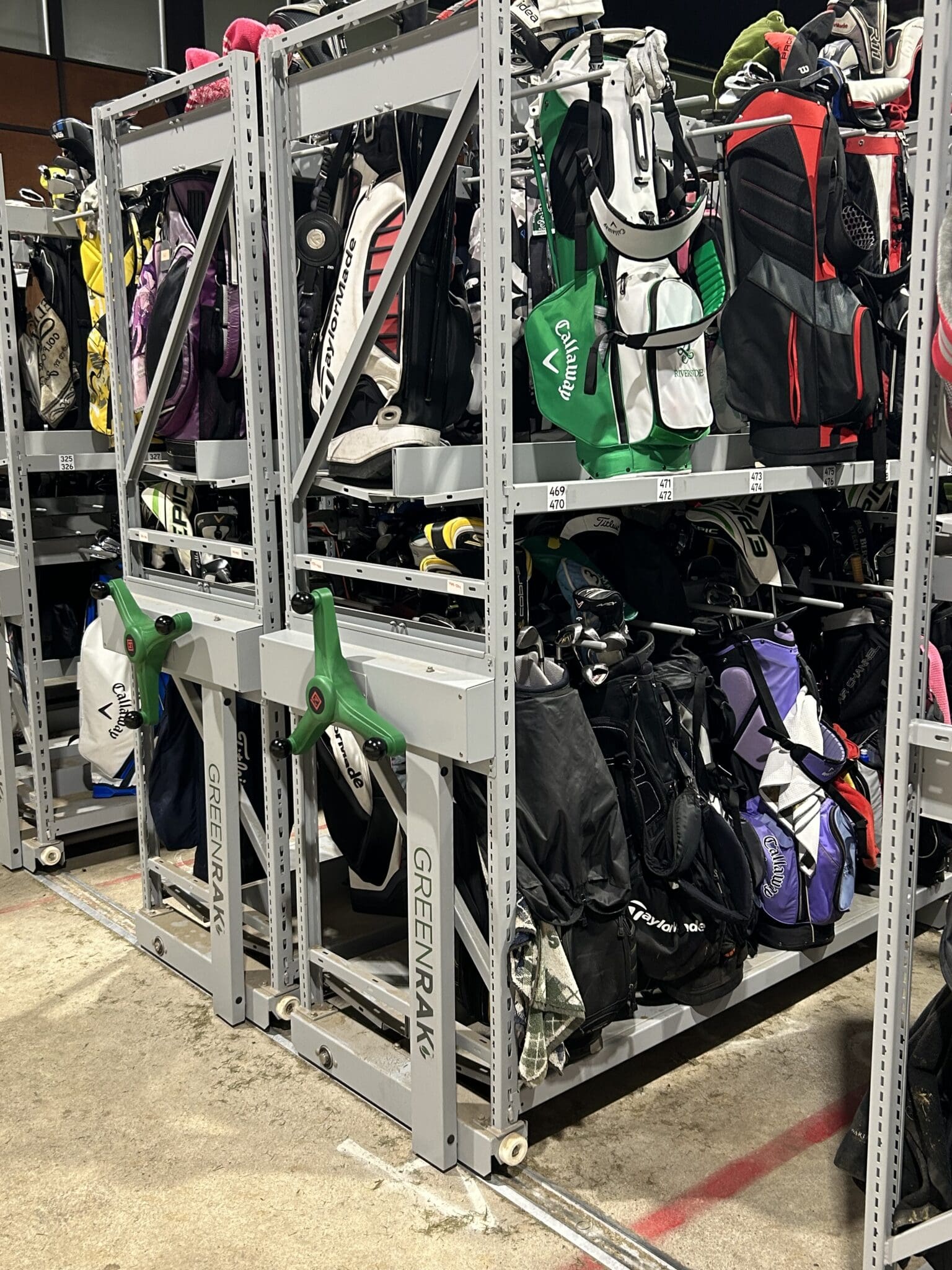

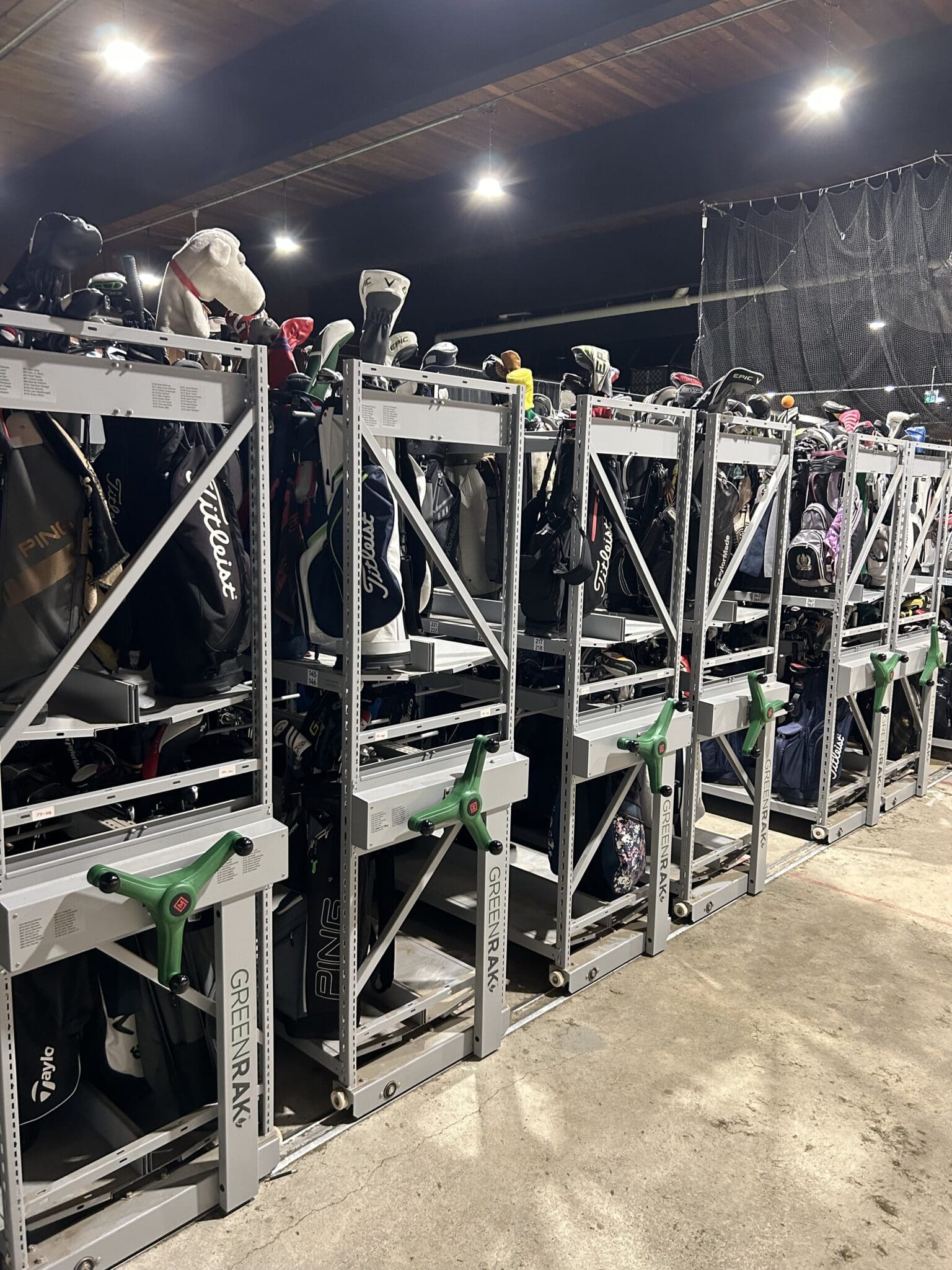

Montel’s BULK&ROLL mechanical-assist mobile system is designed for high-density mobile storage of light to medium loads. Its simple design makes it easy to install and use in many different applications such as convenience stores, back stores, luggage handling, warehouses, hardware stores and any general storage of bulky items.

TECHNICAL SPECIFICATIONS:

• Rails: Made of aluminum bars up to 144” long and secured to the floor with concrete screws. Levelness of floor to be 1/2” maximum variation within 10’.
• Wheels: Made of a proprietary glass-filled nylon that is resistant to water and most chemical solvents. They have good abrasion and compression resistance and they won’t flat spot. They have an operating temperature of -45° to +350° Fahrenheit.
• Bearings: All wheel bearings are stainless steel ball bearings.
• Wheel Shafts: All shafts are made of stainless steel.
• Wheel Channels: Made of steel and are powder coated. Formed to be easy to clean. Capacity of 2,400lbs per section.
• No Side Members: Wheel channels are linked at their center to create a free space for the workers’ shoes on both sides of the mobile.
• Drive Tube: Tubular drive shafts are made of 1.315” (33.4mm) outside diameter by 1.045” (26.5mm) inside diameter powder coated steel tubing. Each end is sealed.
• Handles: Are made of durable glass-filled nylon and have a push-button aisle locking mechanism.
• Chain Mechanisms: Chains are confined to hide mechanical hazards.
• Hardware: All hardware is made of stainless steel.
• Racking: 4D Bolted Light-duty racking is made of steel and is powder coated.
